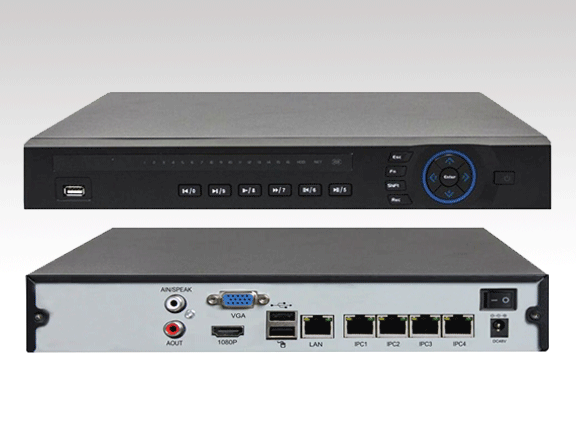

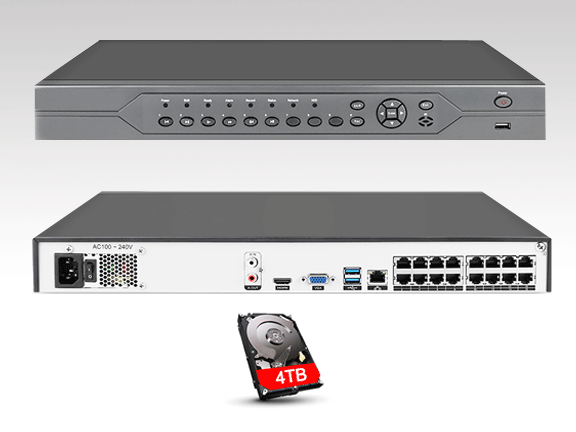

   MODEL #:PSNV-POE4, PSNV-POE8, PSNV-POE16

Embeded 4 PoE NVR Security System 4 CH 1080P 8CH 960P 1 SATA Slot HD HDMI output ONVIF
Features:

​​

  • Embedded PoE NVR Security System 4Ch, 8Ch or 16CH  3MP/1080P/720P POE IP camera inputs

  • 1 or 2 SATA Slot HD HDMI output (optional)

  • 1 - 4 Channel playback

  • Supports dual stream;

  • Embedded PoE Network ports;

  • Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;

  • 2 USB2.0 ports, 1 SATA 2.0 HDD port (up to 4TB);

  • Network protocol - TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,

  • FTP,RTSP,Onvif,P2P

  • Mobile Device iPhone, iPad,Android Phone, Android Pad

  • System Upgrade Supports USB update

  • Remote SoftwareStreamView APP, IE Browser,Google Chrome Browser,Firefox Browser

  • Operation Mode Preview, Record, Playback, Backup, Network, Mobile Surveillance

  • CPU - HI3521

  • Password security Multi-level users management, 1 Admin + 19 User

  • Optional 2MP & 5MP POE NVRs With Optional Four (4), Eight (8) and Sixteen Channel (16) Built-in POE ports

   MODEL #:PSXV-5014, PSXV-5018, PSXV-50116, & PSXV-50132

5MP 5-in-1 - Four (4), Eight (8), Sixteen (16) & Thirty-two (32) Channel (AHD, CVI, TVI, IP, CVBS) XVR
Features:

​

  • 5MP AHD, TVI, CVI, CVBS and IP five in one DVR

  • 4/8/16/32 channels 5.0Mp @ 6fps or 1080P @ 15fp video input

  • Support multiple analog/ip hybrid input, NVR support ONVIF

  • Display Output - 1*VGA, 1*HDMI HD output

  • Audio 4 in 1 out, Alarm 4 in 1 out

  • Audio Compression G.711A

  • 2*SATA (maximum 6T), 1*RS485, 1*RJ45 (10M / 100M)

  • 2*USB, DC12V4A power supply

  • Chipset - Hi3520D V300

  • Video Compression - H.264/H.265

  • Encode 8CH 1080N @12fps

  • Decode 4CH 1080N @12fps

  • Multi-mode Input Pure Analog: 8CH 1080N AHD/CVI/TVI/CVBS/IP.

  • Hybrid: 2CH 1080P Analog + 2CH 1080P IP /4CH 1080N Analog + 4CH 960P IP

  • Pure Network: 16CH 1080P, 16CH 960P, 4CH .5.0MP

  • Audio Intercom Support

  • Record Mode Manual > Alarm > Motion Detection > Timing

  • Playback Channels 4CH

  • Backup ModeNetwork Backup, USB HDD, USB Writer, Sata Writer

  • Video Input - Optional 4CH, 8CH, 16Ch or 32Ch BNC

   MODEL #:PSDV-2014, PSDV-2018, PSDV-20116, & PSDV-20132

2MP 5-in-1 - Four (4), Eight (8), Sixteen (16) & Thirty-two (32) Channel (AHD, CVI, TVI, IP, CVBS) XVR
Features:

​​

  • 2MP or 1080P AHD, TVI, CVI, CVBS and IP five in one DVR

  • 4/8/16/32 channels 1080P @ 15fp video input

  • Support multiple analog/ip hybrid input, NVR support ONVIF

  • Display Output - 1*VGA, 1*HDMI HD output

  • Audio 4 in 1 out, Alarm 4 in 1 out

  • 2*SATA (maximum 6T), 1*RS485, 1*RJ45 (10M / 100M)

  • 2*USB, DC12V4A power supply

  • Chipset - Hi3520D V300

  • Video Compression - H.264

  • Encode 8CH 1080N @12fps

  • Decode 4CH 1080N @12fps

  • Multi-mode Input Pure Analog: 8CH 1080N AHD/CVI/TVI/CVBS/IP.

  • Hybrid: 2CH 1080P Analog + 2CH 1080P IP /4CH 1080N Analog + 4CH 960P IP

  • Pure Network: 16CH 1080P, 16CH 960P, 4CH .5.0MP

  • Audio Compression G.711A

  • Audio Intercom Support

  • Record Mode Manual > Alarm > Motion Detection > Timing

  • Playback Channels 4CH

  • Backup ModeNetwork Backup, USB HDD, USB Writer, Sata Writer

  • Video Input - Optional 4CH, 8CH, or 16CH BNC
